NCF D200CR (Double Bias Carbon Fiber Non Crimp Fabric combined with Resin)

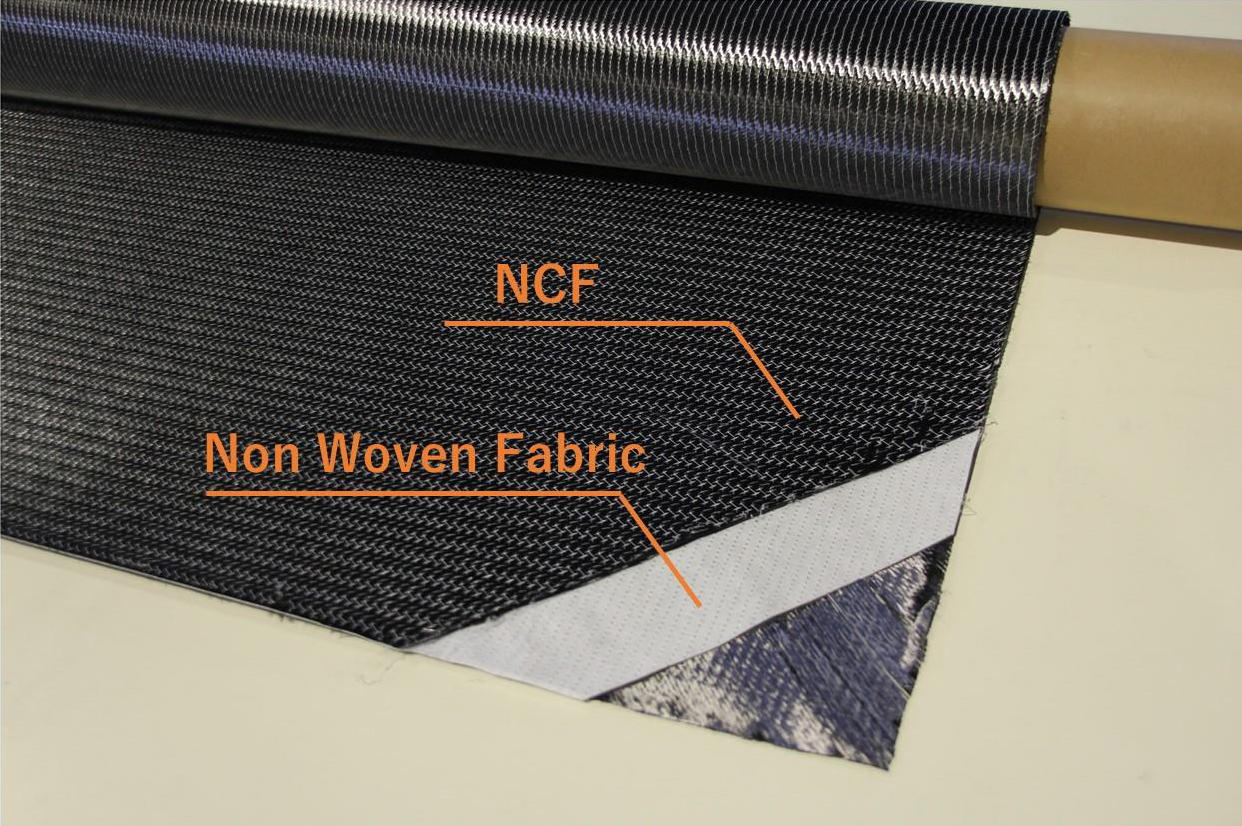

NCF D200CR is a single fabric containing 2 layers (orientated +45° and −45°) of continuous carbon fiber (CF) stitched by polyester with PA6 film inserted as 3rd layer between them. The NCF feature of high material properties, retaining of fiber alignment during molding, and high drapability is maintained. The material offers innovative material configuration that enables to impregnate resin directly from integrated resin film without infusion or RTM process. The material can be molded to high strength and extra stiffened composite product by pressure process with high temperature (> 250°C).

See the Data Sheet

* Data can be downloaded.

Representative example

Contact us for details.
